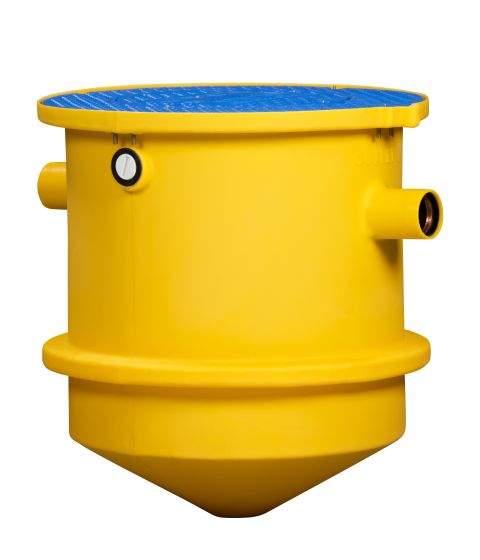

TSS-70 TRAPZILLA SOLIDS SEPARATOR
For in-ground installation
The TSS-70 Trapzilla Solids Separator is designed to be a compact solids separator capable of retaining high volumes of solids. Ideally, a TSS-70 Trapzilla Solids Separator would be installed in conjunction with a TZ-400 Trapzilla Grease Interceptor, effectively removing solids and permitting the grease interceptor to operate at maximum efficiency. Basic Trapzilla Solids Separator Models come with a Standard Adapter Ring lid and a 22" Solid Top Cover that can be removed easily to clean out retained solids.
Aqua Mundus Trapzilla Model No. TSS-70, rotationally molded polyethylene solids separator(s) for in-ground installation, rated at 75 gallons per minute (4.73 l/s) peak flow, 70 gallons (265 l) of solids storage capacity, fully removable lid for vacuum access by pump truck for solids removal, and including as an integral part of the unit a vessel vent.

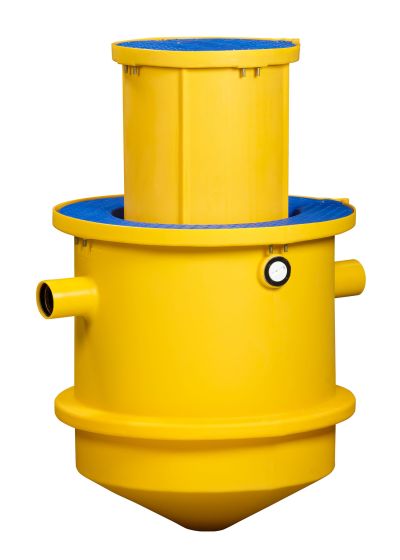

TSS-70-ECA TRAPZILLA SOLIDS SEPARATOR
For in ground installation, up to 18" deep (457mm)
The TSS-70-ECA In-Ground Trapzilla Solids Separator is designed to be a compact solids separator capable of retaining high volumes of solids. Ideally, a TSS-70-ECA Trapzilla Solids Separator would be installed in conjunction with a TZ-400-ECA Trapzilla Grease Interceptor, effectively removing solids and permitting the grease interceptor to operate at maximum efficiency. In-Ground Trapzilla Solids Separator Models come with an Extension Collar Adapter Ring lid, 18" long Single-Piece Extension Collar and a 22" Solid Top Cover that can be removed easily to clean out retained solids.
Aqua Mundus Trapzilla Model No. TSS-70-ECA, rotationally molded polyeth- ylene solids separator(s) for in-ground installation, rated at 75 gallons per minute (4.73 l/s) peak flow, 70 gallons (265 l) of solids storage capacity, fully removable lid for vacuum access by pump truck for solids removal, and including as an integral part of the unit a vessel vent. Includes one extension collar assembly, linear low-density rotationally molded polyethylene in two pieces for field adjustability to optimal installation depth.

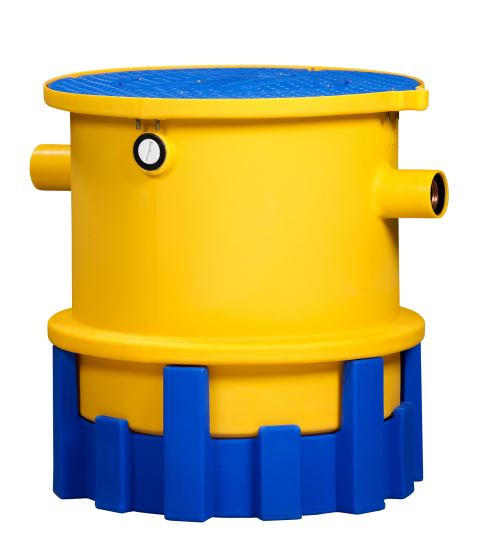

TSS-70-SSA TRAPZILLA SOLIDS SEPARATOR
Comes with a support stand for above-ground installations
The TSS-70-SSA Above-Ground Trapzilla Solids Separator is designed to be a compact solids separator capable of retaining high volumes of solids. Ideally, a TSS-70-SSA Trapzilla Solids Separator would be installed in conjunction with a TZ-400-SSA Trapzilla Grease Interceptor, effectively removing solids and permitting the grease interceptor to operate at maximum efficiency. Above-Ground Trapzilla Solids Separator Models come with a SSOP-70/95 Support Stand, Standard Adapter Ring lid and a 22" Solid Top Cover that can be removed easily to clean out retained solids.
Aqua Mundus Trapzilla Model No. TSS-70-SSA, rotationally molded poly- ethylene solids separator(s) for in-ground installation, rated at 75 gallons per minute (4.73 l/s) peak flow, 70 gallons (265 l) of solids storage capacity, fully removable lid for vacuum access by pump truck for solids removal, and including as an integral part of the unit a vessel vent. Included support stand manufactured out of linear low-density rotationally molded polyethylene.
