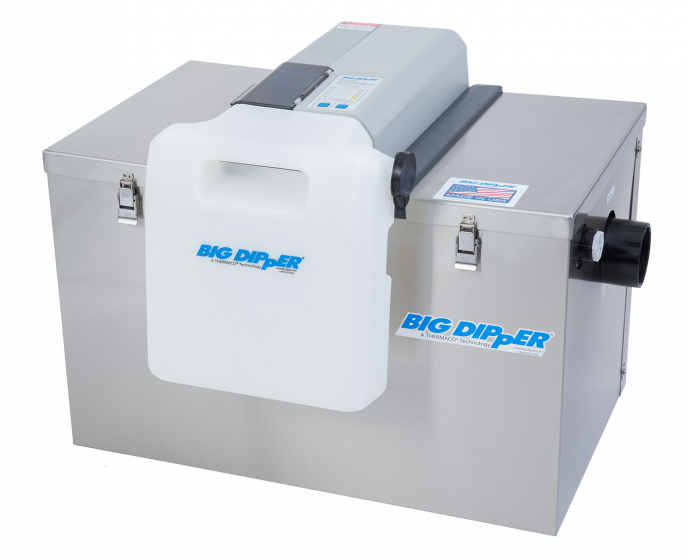

Big Dipper W-350-ISE

BIG DIPPER 350 AUTOMATIC GREASE REMOVAL UNIT (2.21 L/S)

Big Dipper Model No. W-350-IS, bright finish type 304 stainless steel exterior, rotationally molded polyethylene interior automatic self-cleaning grease and oil recovery separator(s) for floor mounted or partially recessed installation, rated to ASME A112.14.3 and/or PDI-G 101 standards at 35 gallons per minute (2.21 liters per second) peak flow with 85.18 Pounds (38.6 Kg) of grease capacity and including as an integral part of the unit, 3” (75 mm) inlet/outlet, 1 rotating gear oleophilic/hydrophobic skimming wheel assembly for automatic grease/oil removal, flow control device, self-regulating electric immersion heater with thermostatic control, 1” (25mm) vessel vent, integral gas trap, digital control for programmable operation, field reversible motor assembly and grease/oil sump outlet, quick release stainless steel lid clamps, fully removable polymer lid with magnetic lid tensioners, internal polymer/stainless steel strainer basket for collection of coarse solids, polymer wiper blade unit and a separate gasketted removable grease and oils collection container with carry handle and pouring spout. Electric assembly shall be tested to comply with pertinent sections of the Standards for Safety ANSI/UL 73 and/or ANSI/UL 1004. Electric motor equipped with overload protection. Two (2) no-hub connectors for plumbing connection provided.

Big Dipper 350 (2.21 l/s flow rate)
Fully automatic self cleaning cycle. Removes collected fats, oils & grease from retention tank without any operator assistance. Comes complete with 24-hour timer and external collection container for easy disposal. Constructed of corrosion resistant materials suitable for installation in virtually any location. Attractive sanitary Stainless Steel exterior. Integrated Motor/Grease Outlet/Heater/Lid enables a fast, do-it-yourself unit operation reversal. Compact footprint. Two 50mm rubber couplers provided for simple installation on to kitchen waste pipework.

Product Information

Material Exterior:	304 Stainless Steel, Bright Finish
Material Interior:	Rotationally Molded Polyethylene
Electrical:	230 VAC, 50 Hz, 520 Watts (2.3 Amps)
Maximum Inlet Flow Rate:	2.21 l/s
Number of Skimming Wheels:	1
Grease Skimming Rate:	9.08 Kg Per Hour
Grease Retention Capacity:	31.8+ Kg
Internal Solids Strainer Capacity:	7 Liters

Single Fixture Sizing Applications:

• Pre Rinse Sink
• 1-4 Compartment Sinks (610 x 610 x 381mm)
• Wok Range (5+ stations)
• Combi Ovens
• Ventilation Hood
